ESC Features
- Bluetooth Wireless Mobile and USB PC Tuning with the HotWire 3.0
- Billet 6061-T6 Aluminum Heat Sink Housing
- NEW FET Package
- NEW HD Easy Solder Posts
- Optional Shroud and High RPM Cooling Fan
- 3rd Channel Input for On-The-Fly Drag Brake Adjustments
- QuickTune™ One Touch Programming
- Adjustable Torque Control *
- Adjustable Throttle and Brake Frequencies *
- HD High Voltage Programmable BEC * HotWire™ Programming Port *
- On-the-fly Drag Brake Adjustment
- Data Logging Capability *
- Sensor Checker
- On-Board Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- Brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs
- Sensor Plug for Precise Commutation
- HDAC: High Density Copper PCB's
- Ultra-smooth and Precise Throttle and Braking Control
ON BOARD QuickTune™ PROGRAMMABLE FEATURES
- DB - Drag Brake (13 steps)
- BS - Brake Strength (13 steps)
- LM - Torque Limiter (7 steps)
- NW - Neutral Width (13 steps)
- TP - Timing Profiles 5 Preset - 2 Custom*
- MT - Motor Type
Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay - VC - Voltage Cutoff : 2S, 3S, Custom* * requires HotWire™ sold separately.
ESC Overview

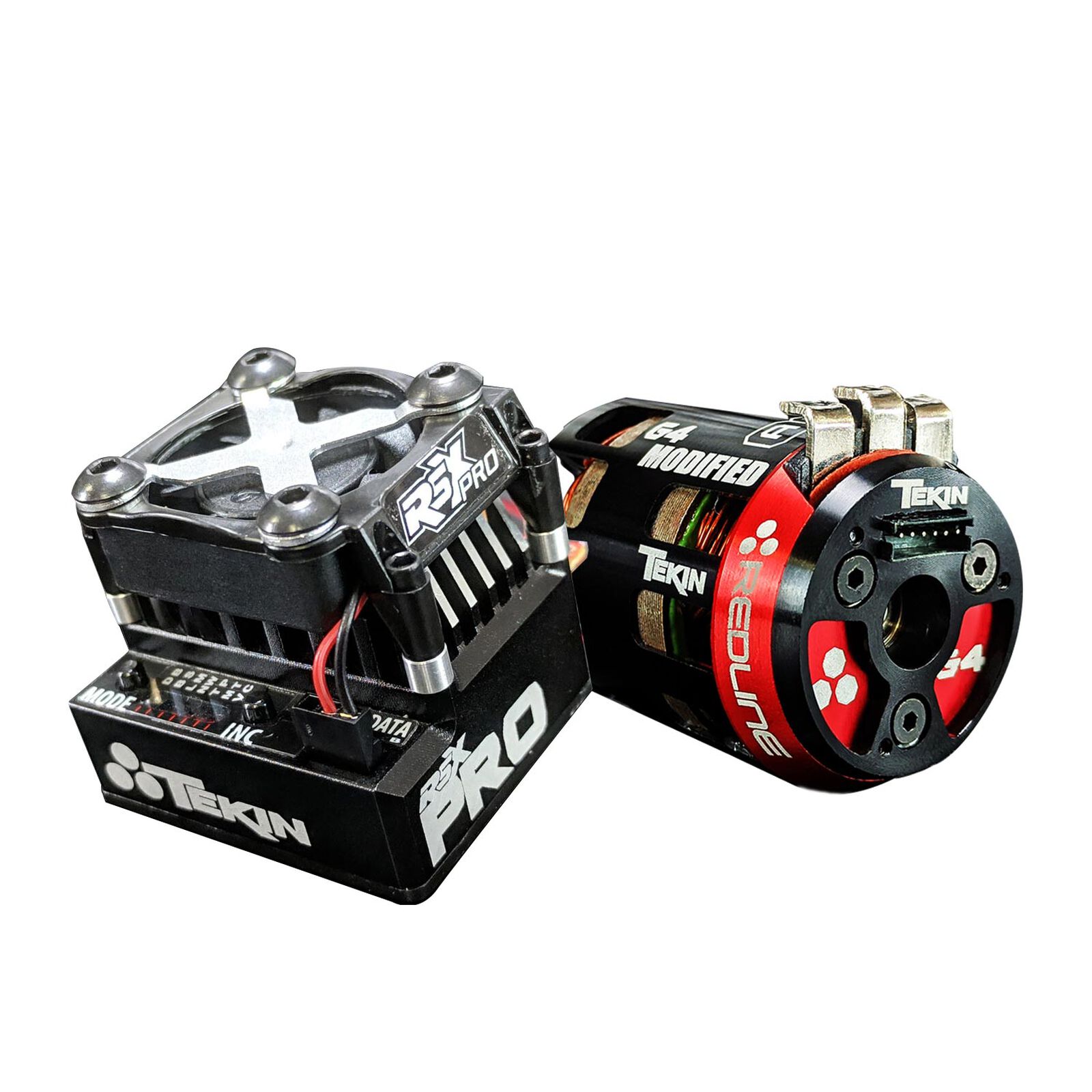

The RSX PRO is Tekin's premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, you have the ability to fine-tune the RSX PRO's massive power for the win. Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.
Motor Features
- 60 Degrees Adjustable Timing Advance
- Modified Racing Specific Design
- CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
- Neodymium Sintered Magnet
- Precision Engineered for Maximum Energy Conversion
- High Purity Copper Windings Maximize Conductivity
- Low Resistance, High Power Solder Tabs
- Sensored System Ready
- Anodized End-bell Plates Maximize Corrosion and Wear Resistance
- High RPM Precision Bearings
- Oversized Front Bearing
- Rebuild-able Design
- Solder-less Sensor PCB Replacement
- Legal in Major Race Governing Bodies
- ROAR Approved
Motor Overview
Tekin’s fourth generation brushless motors are engineered for award-winning performance. Utilizing the best materials available, we designed the GEN4 to cut weight while reducing resistance, resulting in a purebred racing machine. From Drag Racing to 4WD Modified Buggy, the GEN4 motors handle all situations, providing the smooth power and control across all RPMs when you need it. The GEN4 Modified motor is competition performance with the speed you need to win. Pair with an RSX Pro for the ultimate in modified racing equipment.
The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 Modified motor is a premium performance power plant for the serious racer.
ESC Specifications
- Controls: Forward/Brake/Reverse
- Input Voltage: 2S-3S LiPo / 4-12S NiMH-NiCD
- Motor Limit Brushless Mode: : 2S Drag Racing - 3.5T 2-pole 36mm Can/2S Track Racing - 3.5T 2-pole 36mm Can
- Motor Limit Brushed Mode: 2S - 6 Turn 36mm Can/3S - 12 Turn 36mm Can
- Max Current: 210amps per phase*
- HV Adjustable BEC: 6.0v / 7.4v @ 5.5amps
- Dimensions: 1.21 x 1.43 x .82" / 31.2 x 37.2 x 21mm
- Weight: 1.4oz / 40g
Motor Specifications
- Input Voltage: 1-2S LiPO - 9.5T / 8.5T / 7.5T / 6.5T / 5.5T
- Weight: 5.1oz / 145g
- Shaft Dimensions: 3.18mm (1/8") x 15.3mm
- Motor Diameter: 35.85mm / 1.40"
- Motor Length: 50.25mm / 1.978"
- Max Operating Temperature: 180°F / 82°C
- Bearing Dimensions:
Front: 4x13x5mm
Rear: 1/8x3/8x5/32" - Rotor Size: 12.5mm GREEN
- Rebuildable: Yes
